Vertical Powerdock MK3

The Mk2 Vertical Powerdock is an in-desk mounted power unit that can be concealed when it's not in use. To access  the outlets, simply raise the unit from the workplace and connect your appliance.



The Vertical Powerdock is neatly stowed below desk surface when not in use. When power outlets are required, the unit is lifted from the desk surface using the metal handles. The unit will lock in its uppermost position allowing easy connection of power, data and voice cables. It is very simple to install as it fits easily within an 95mm diameter hole.

  • Can be supplied with combinations of power, data and voice in same unit.

​

  • Retractable, concealed desk power outlet system.

​

  • Available in a variety of configurations.

​

  • Minimal space required for installations.

​

  • Splash proof when closed.

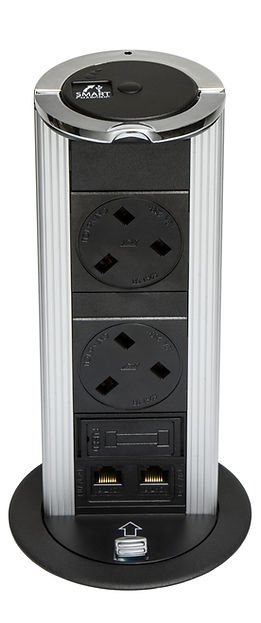

PD3-2S2-106C (2)_edited.png

Product Code                     -

​

Operating Voltage                     110V - 250V AC 50/60Hz

​

Current                                          15A - 20A



Max Power                                    1500W - 4800W



​Length                                           Variable (depending on configuration)



Mounting Hole                             95mm



Max Width                                     130.5mm



Mounting Hole                              95mm



Work Surface Thickness             10MM-50mm

​​​

​

AdobeStock_668327386 catalogue_edited.png

Product Sheet

data sheet AdobeStock_668327386_edited_edited.png

Data Sheet
